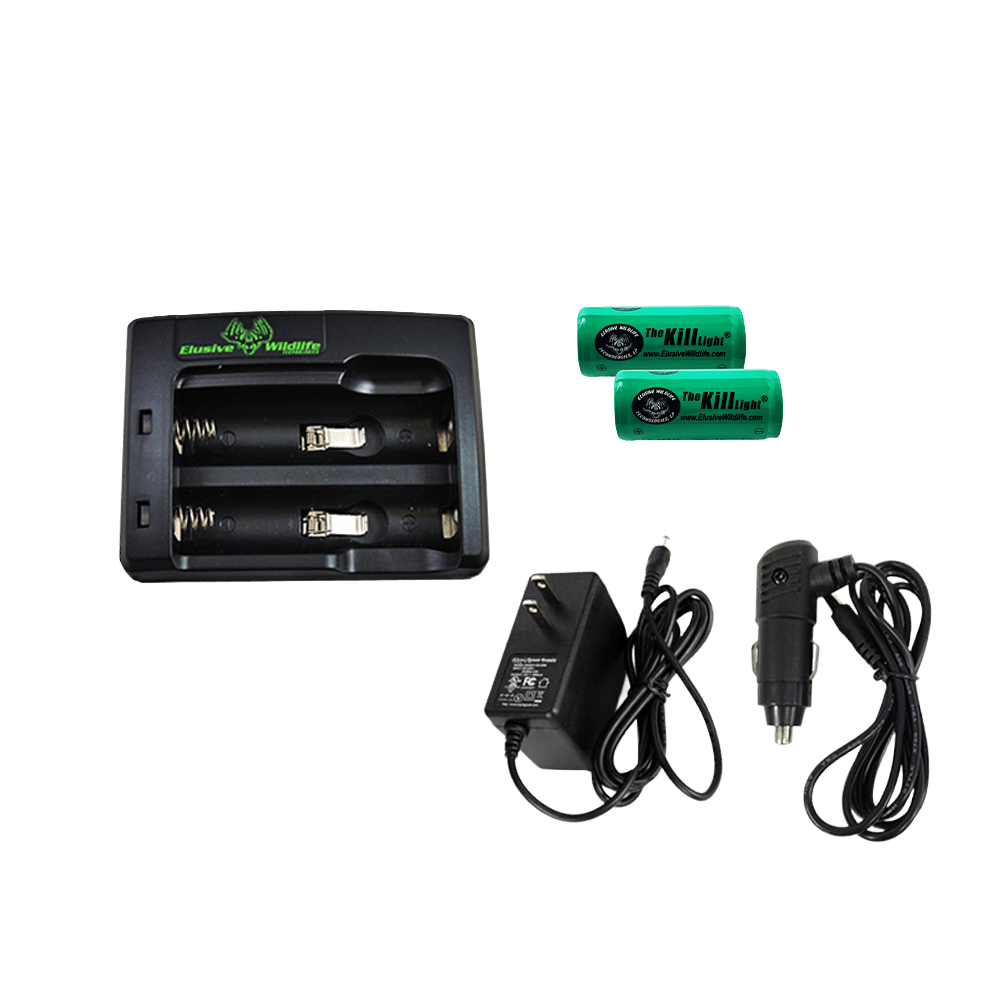

Kill Light Universal Battery Charger Kit with 16340 Batteries-2 Pack

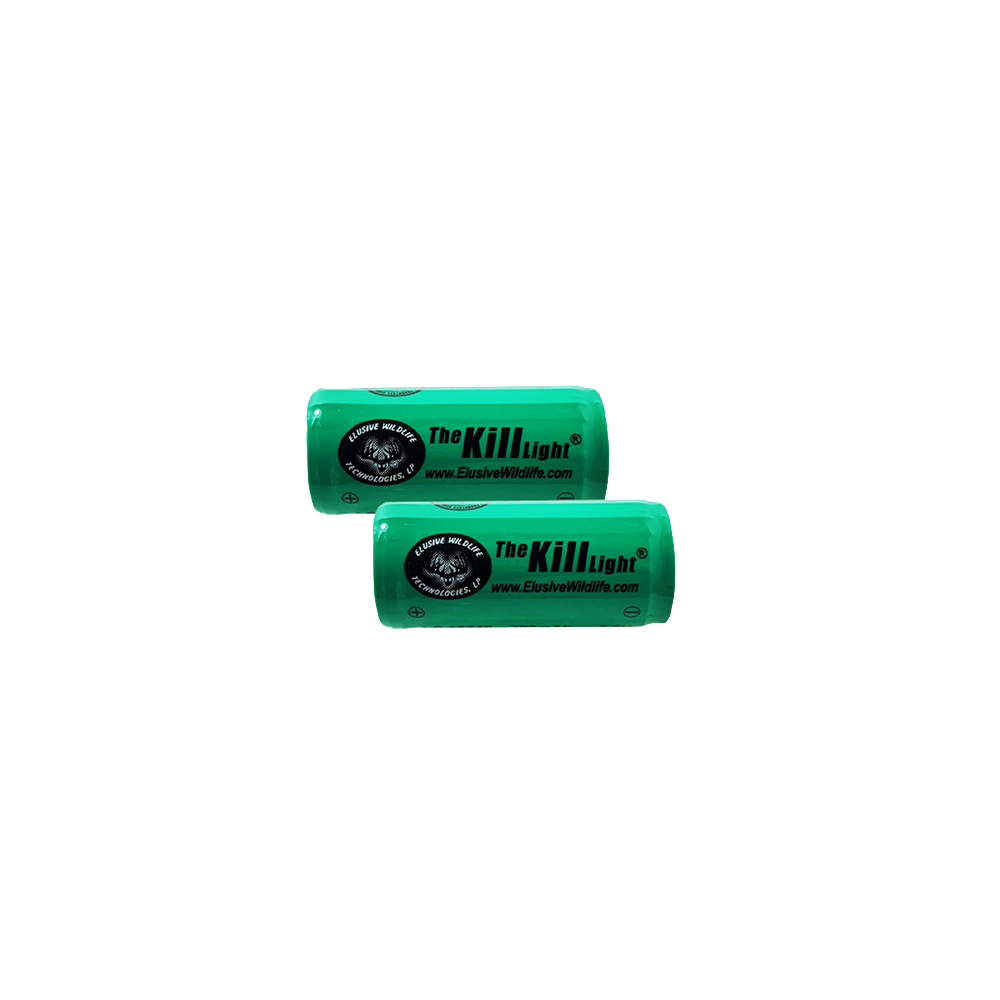

The perfect charging station for your Kill Light batteries. Dual station USB charging for our 16340 batteries with LED indicators so you know when your at full charge. Included is a 2 pack of our 16340, 700mah rechargeable batteries built for use in our Piglet and Piglet HD products.

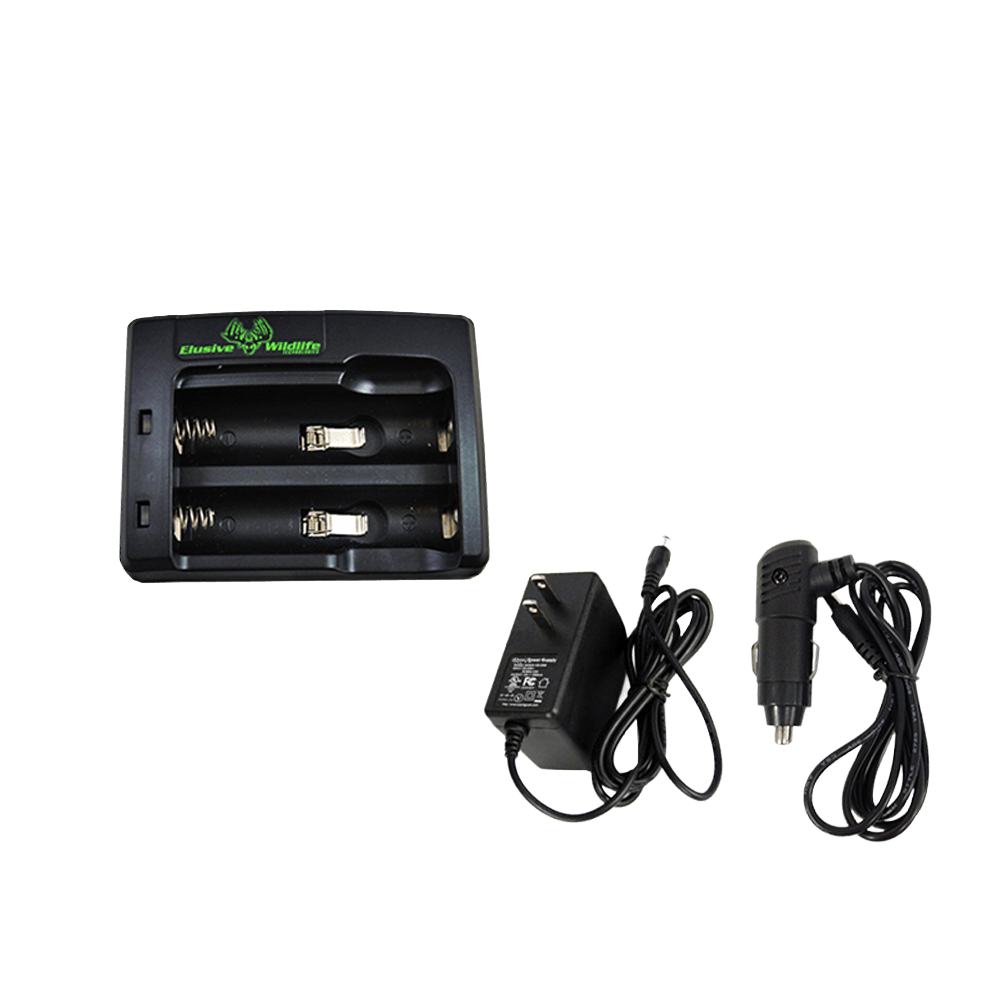

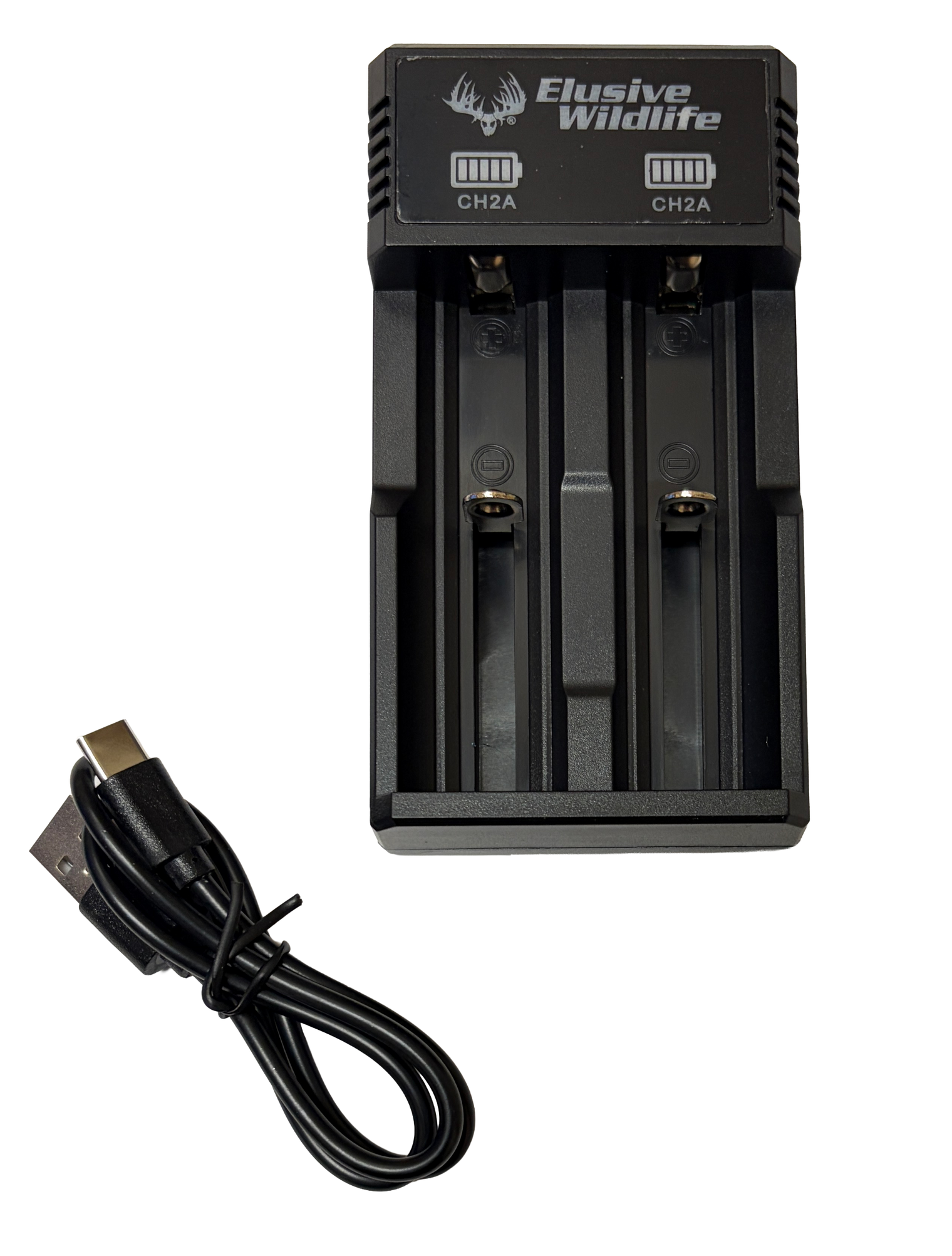

USB DUAL BAY CHARGER
Keep your hunting lights powered and ready with the new Kill Light Universal Battery Charger Kit. This upgraded USB charger is designed for faster, more convenient charging and works with virtually all rechargeable batteries we carry.

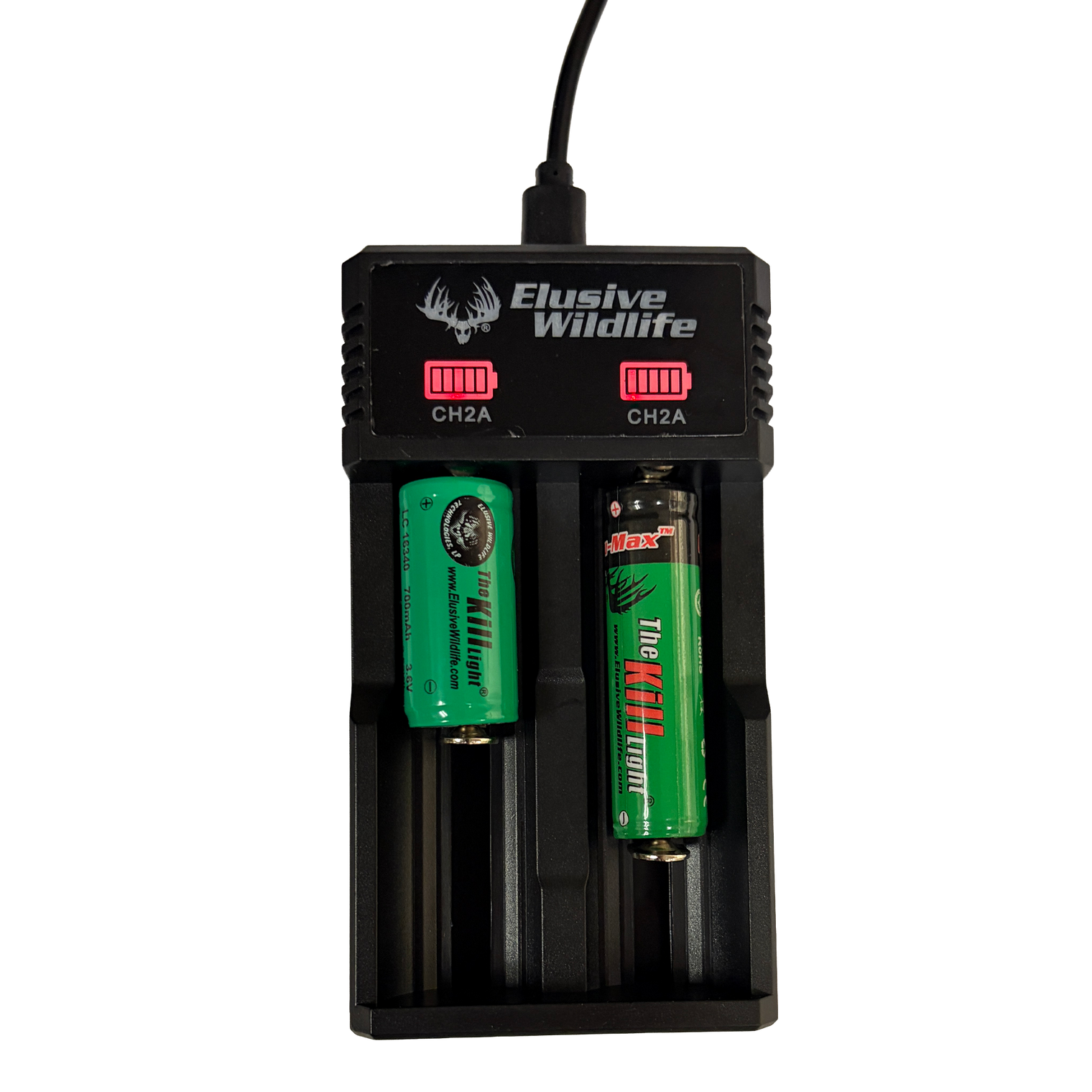

Featuring dual charging bays, this charger lets you charge two batteries at once while automatically detecting charging status. The easy-to-read LED indicators show:
- Red light = Charging
- Green light = Fully charged / Ready to use
Compatible with most common rechargeable battery sizes including 26650, 18650, 18500, 18350, 17670, 16340, 14500, 14650, 10440, and more.
Important: This charger is not compatible with our 21700 battery, as our 21700 includes a protection circuit that makes it slightly too long to fit properly.
Features:
- Fast USB charging (5V/2A input)
- Dual-slot charger for charging 2 batteries simultaneously
- Universal compatibility with most Kill Light rechargeable batteries
- Automatic charge protection for battery safety
- LED charge status indicators (Red = Charging / Green = Ready)
- Compact and travel-friendly design
1 Year Limited Warranty
Typical 16340 / 700 mAh Battery Specs
| Parameter | Typical Value / Range | Notes / Comments |
|---|---|---|
| Nominal Voltage | ~ 3.7 V | Most 16340 cells are rated at 3.6 – 3.7 V nominal. |
| Fully Charged Voltage | 4.20 V ± 0.05 V | Standard for Li-ion (CC/CV charging) |
| Cutoff / Minimum Safe Voltage | ~ 2.7 V to 2.75 V | Many protected cells will cut off around this level to avoid damage. |
| Capacity | 700 mAh (typical) | This is your stated rating. Some cells claim higher, but 700 mAh is common. |
| Energy | ≈ 2.59 Wh | 3.7 V × 0.700 Ah = 2.59 Wh. |
| Max / Pulse Discharge Current | ~ 2 A (pulse) | Many cells in this capacity range are limited in discharge current. |
| Standard Charging Current | ~ 0.2C to 0.3C (≈ 140 mA) | For safe, long-life charging. |
| Max Charging Current | Up to 700 mA (some spec) | But pushing max charge current stresses the cell and shortens life. |
| Dimensions (Unprotected / Standard) | Diameter: ~ 16.0 – 16.5 mm Length (height): ~ 34.0 mm |
“16340” denotes ~16 mm diameter, ~34 mm length. |
| Dimensions (Protected versions) | Diameter: ~ 16.5 – 17.0 mm Length: 35 – 36 mm (sometimes) |
The protection circuit and tube sleeves add a bit of size. |
| Weight | 22 g | With protection circuit and sleeve |
| Cycle Life | 300 – 500 cycles (or more) | With good charging practices. |
| Operating Temperature Range | Varies, often –20 °C to ~60 °C or more |
**NOTE: IT IS HIGHLY RECOMMENDED TO COMPLETELY CHARGE ALL KILL LIGHT BATTERIES AT LEAST ONCE EVERY 6 MONTHS. AS WITH ALL LITHIUM BATTERIES, NEVER LEAVE BATTERIES UNATTENDED WHILE CHARGING OR IN THE CHARGER BASE WHEN NOT IN USE.
WARNING: This kit contains lithium ion rechargeable batteries. All lithium batteries are a fire hazard and should not be left unattended while charging. Lithium batteries should be stored in a cool, dry place out of reach of children and in a manner that avoids battery to battery or battery to metal contact. It is best to store lithium ion batteries fully charged to prolong the life of the battery.
⚠️ California Proposition 65 Warning
⚠️ WARNING: This product can expose you to chemicals including lithium, cobalt, and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
