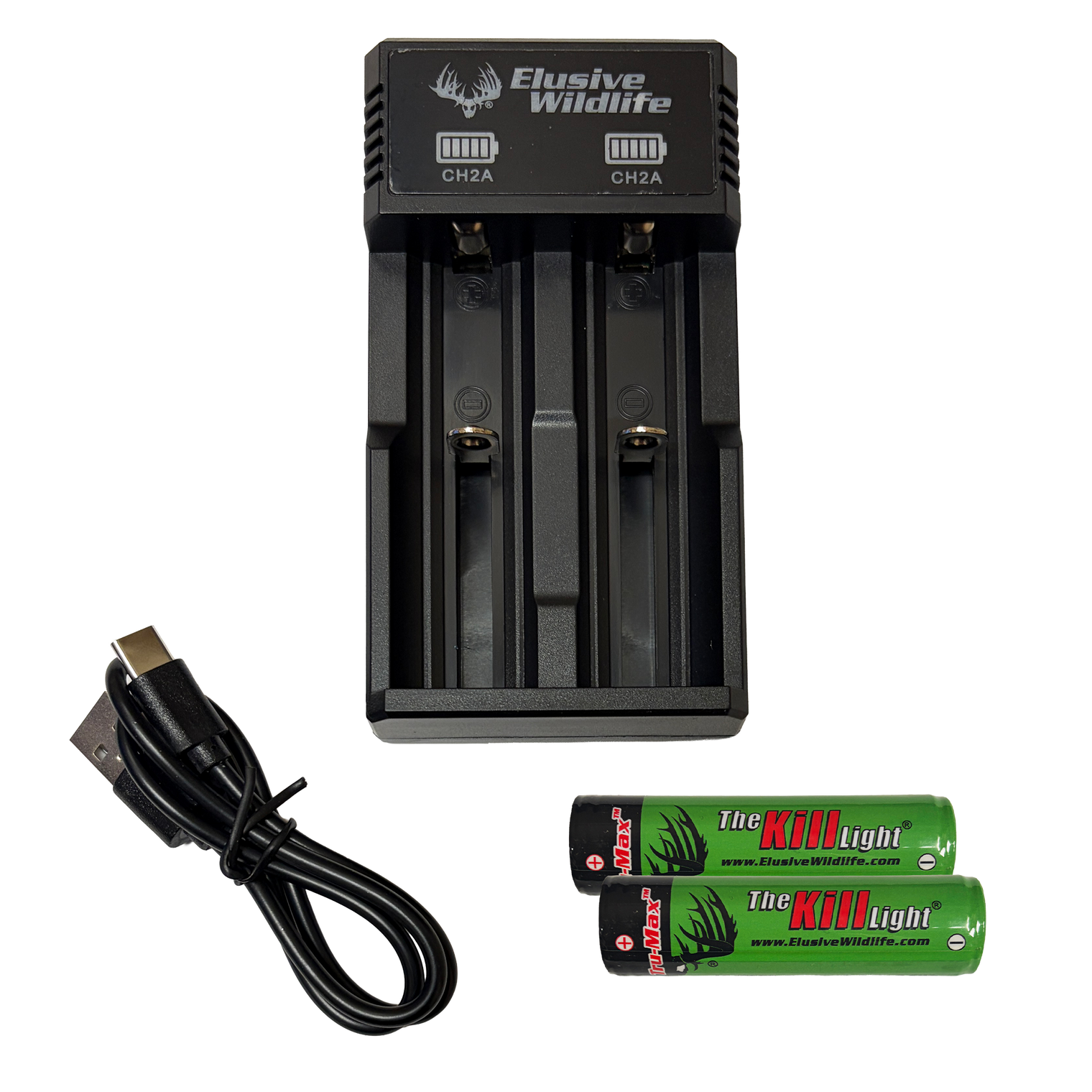

Kill Light Universal Battery Charger Kit with 2600mah Batteries (2 Pack)

$49.99
Shipping calculated at checkout.

A complete charging package for your Kill Light flashlights. The perfect charging station for your Kill Light batteries. Dual station USB charging for two of our 18650 batteries or up to four 16340 batteries with LED indicators so you know when your at full charge.

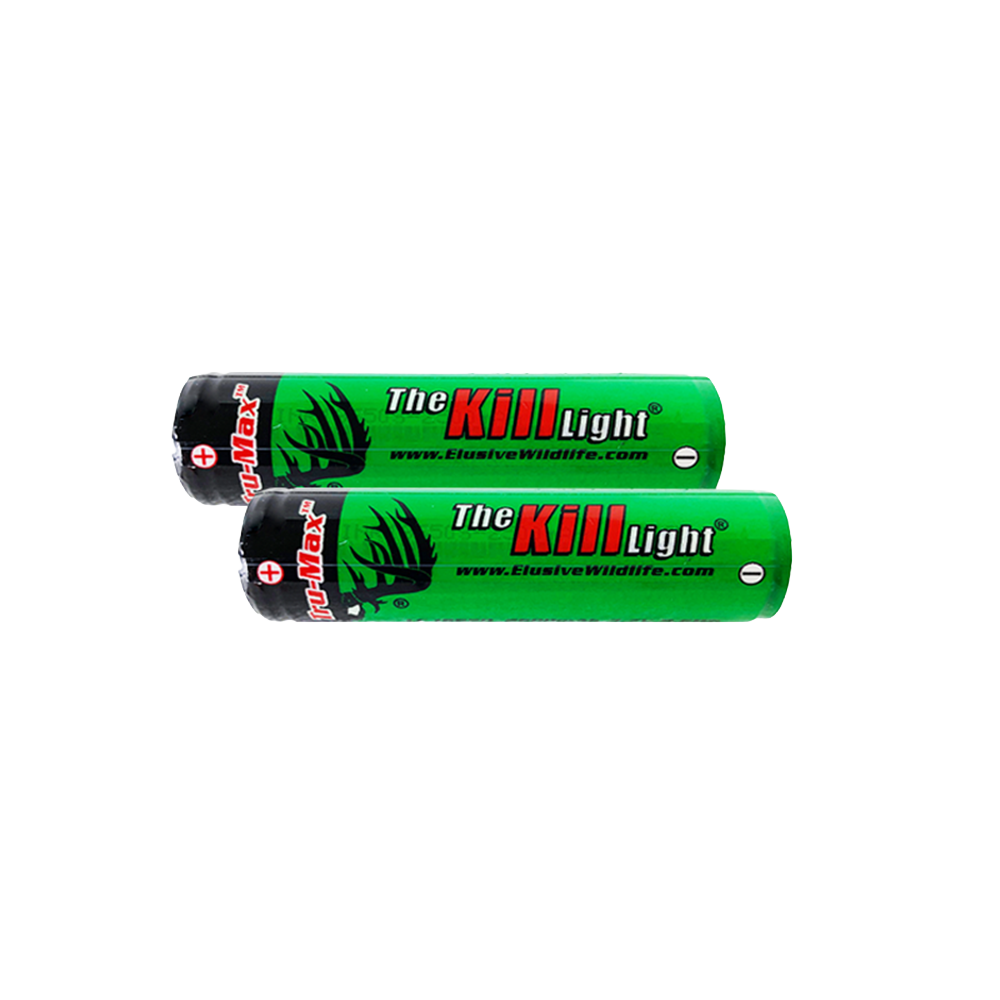

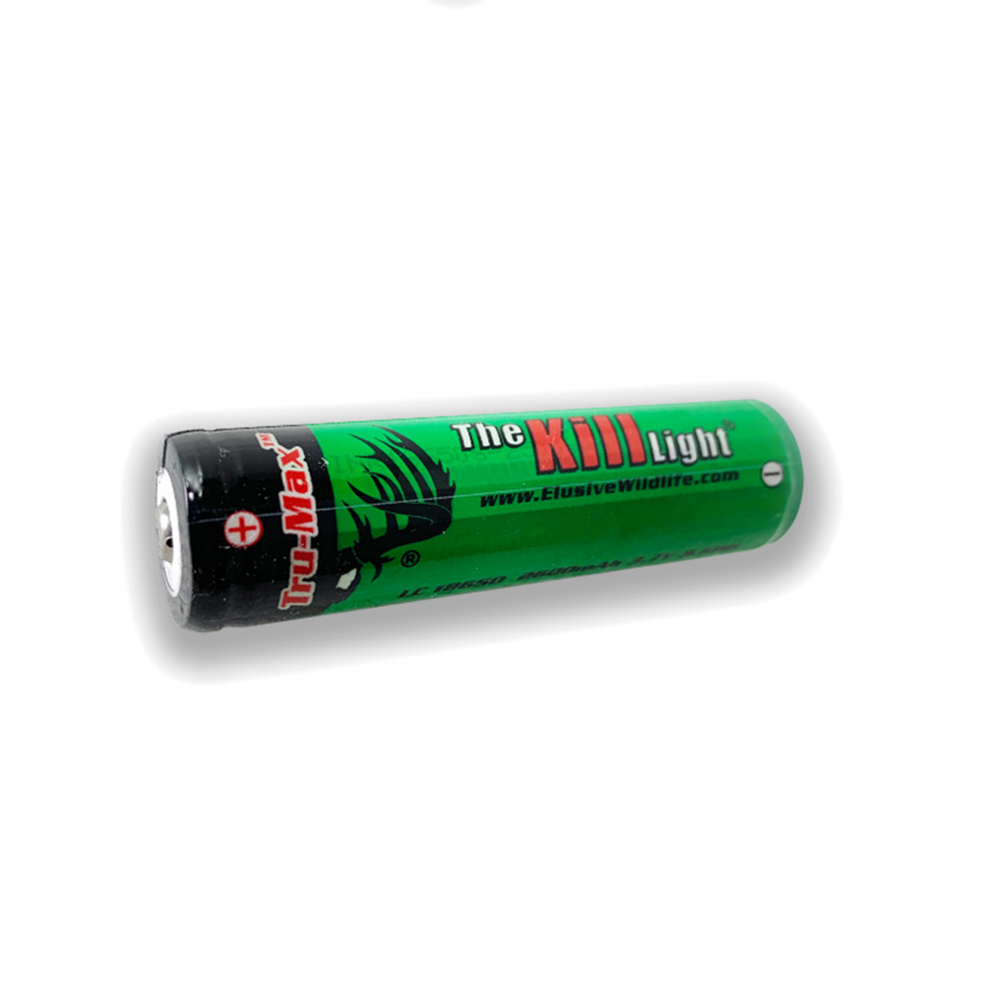

Kill Light 18650 TruMax 2600mAh rechargeable batteries are an excellent choice for any Kill Light product. These 10 year rated lithium rechargeable batteries will give you charge after charge of consistent power. Just 1 will power your Kill Light 250HD, 500HD, 750HD, XLR250, XL100 or Piglet HD Blood Track-R for hours. Excellent performance with our Kill Light charger.

  • 2 Pack
  • Protection circuit prevents over charging

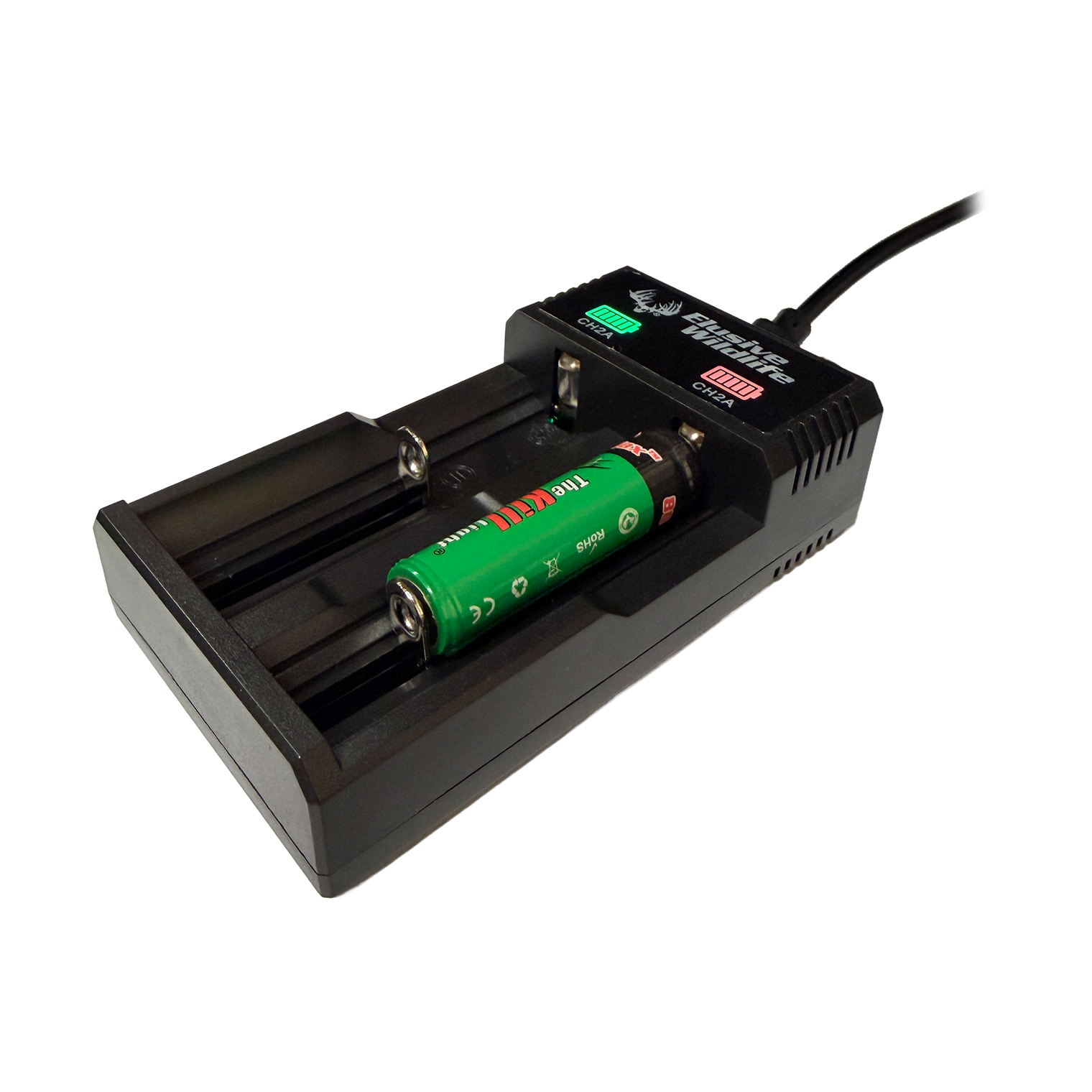

USB Dual Bay Charger

Keep your hunting lights powered and ready with the new Kill Light Universal Battery Charger Kit. This upgraded USB charger is designed for faster, more convenient charging and works with virtually all rechargeable batteries we carry.

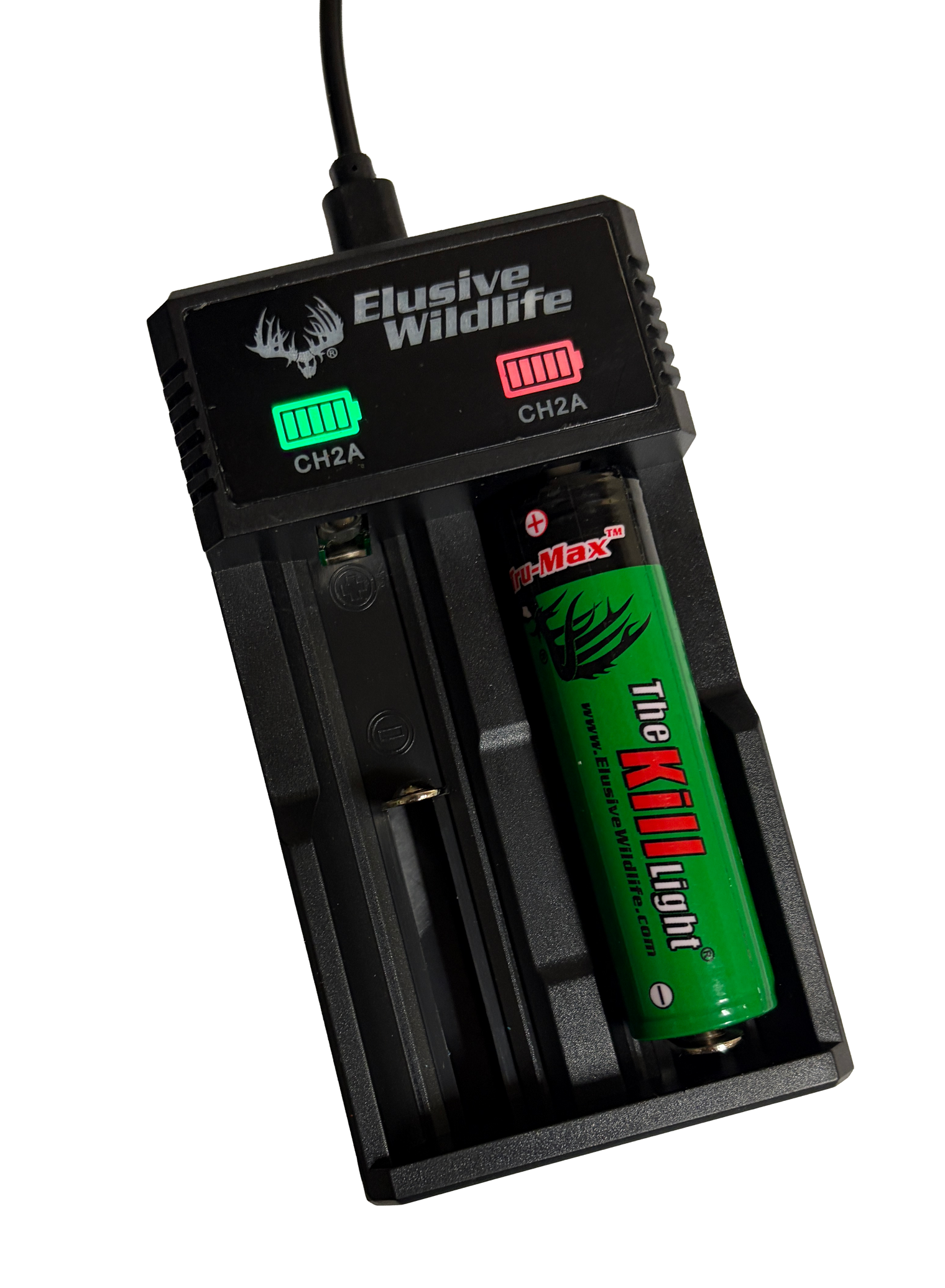

Featuring dual charging bays, this charger lets you charge two batteries at once while automatically detecting charging status. The easy-to-read LED indicators show:

  •   Red light = Charging
  •   Green light = Fully charged / Ready to use

Compatible with most common rechargeable battery sizes including 26650, 18650, 18500, 18350, 17670, 16340, 14500, 14650, 10440, and more.

Important: This charger is not compatible with our 21700 battery, as our 21700 includes a protection circuit that makes it slightly too long to fit properly.

Features:

  • Fast USB charging (5V/2A input)
  • Dual-slot charger for charging 2 batteries simultaneously
  • Universal compatibility with most Kill Light rechargeable batteries
  • Automatic charge protection for battery safety
  • LED charge status indicators (Red = Charging / Green = Ready)
  • Compact and travel-friendly design

1 Year Limited Warranty




18560, 2600mah Specifications

Overcharge Protection / Max Allowed ~4.30 - 4.35 V The protection circuit often clamps / cuts off charging when voltage rises beyond standard safe limit. E.g. in a datasheet: 4.325 V ± 0.05 V for protection board overcharge cut-off.
Discharge Cutoff (Safe Lower Limit) ~2.50 V ± 0.10 V Below this, the protection circuit prevents further discharge to avoid damage.
Over-discharge protection ~2.50 V As above, built into protection PCB.
Maximum Discharge Current (with protection) Varies (e.g. 5 A, 6 A) Because of the protection circuit, the allowed continuous discharge current is limited. For example, one “protected 18650 2600 mAh (button top)” claims ~6 A continuous discharge.
Over-current / short-circuit protection Typically a few A The protection circuit may trip / open on sudden large current draw (short) to protect the cell. Eg. some specs mention “over-current protection” as a feature.
Capacity (Nominal) 2,600 mAh That’s the “2600 mAh” rating (often measured at a standard discharge rate)
Minimum / Guaranteed Capacity ~2,500 mAh Many manufacturers guarantee a minimum (e.g. 2,500 mAh) under standard conditions.
Internal Resistance ≤ ~120 mΩ One spec sheet (for a version with protection) lists ≤ 120 milliohms (1 kHz measurement)
Standard Charge Current ~0.2 C (≈ 520 mA) Some datasheet specs show the “initial charge current” at 520 mA (0.2C) under standard charge.
Rapid / Fast Charge Current ≈ 1C (≈ 1,300 mA) Some specs allow a faster 1C charge rate under controlled conditions (if the cell and PCB support it)
Charge Termination / Cutoff Conditions By time or current drop (e.g. when current drops to ~0.01C) E.g. in a spec, “by current drop: 26 mA (0.01C)” is used to determine end of charge.
Cycle Life ≥ 300 cycles (to 70%+ capacity) The standard spec might guarantee 300 cycles (at modest charge / discharge rates) before capacity degrades to ~70% of initial.
Self-Discharge ≤ ~2% / month at 20 °C Some datasheets mention ≤ 2%/month at 20 °C, increasing at higher temps.
Operating Temperature (Charge) 0 °C to ~45 °C Standard safe range for charging (ambient)
Operating Temperature (Discharge) –20 °C to ~60 °C Typical discharge ambient limits
Storage / Shelf Temperature –20 °C to ~25 °C (1 year); up to ~45 °C for shorter durations Many datasheets limit long-term storage at elevated temperature.
Dimensions (outside with protection / sleeve) ≈ 18.5 mm diameter × 65.0 mm height (± tolerances) Typical for 18650 battery form factor.
Weight ~45–50 g Many protected 18650s of 2,600 mAh fall in this weight range; one spec lists ~47 g.
Protection Circuit Features Overcharge, Over-discharge, Over-current, Short-circuit protection The “protected” label typically implies that the battery has a small PCB which monitors cell voltage, current, and sometimes temperature, and disconnects the cell under abnormal conditions.
Maximum Size with Protection Some extra length from the protection circuit / tabs Because of the added PCB and terminals, the overall package (sleeve, protection board, tabs) can slightly exceed the bare cell dimensions. One protected model (KeepPower P1826K) lists “maximum size: 18.6 × 68.9 mm (±0.2 mm)” (diameter × length) including protection components.

1 Year Limited Warranty

**NOTE: IT IS HIGHLY RECOMMENDED TO COMPLETELY CHARGE ALL KILL LIGHT BATTERIES AT LEAST ONCE EVERY 6 MONTHS. AS WITH ALL LITHIUM BATTERIES, NEVER LEAVE BATTERIES UNATTENDED WHILE CHARGING OR IN THE CHARGER BASE WHEN NOT IN USE

WARNING: This kit contains lithium ion rechargeable batteries. All lithium batteries are a fire hazard and should not be left unattended while charging. Lithium batteries should be stored in a cool, dry place out of reach of children and in a manner that avoids battery to battery or battery to metal contact. It is best to store lithium ion batteries fully charged to prolong the life of the battery.



⚠️ California Proposition 65 Warning

⚠️ WARNING: This product can expose you to chemicals including lithium, cobalt, and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
